1250mm ceramic electrode corona treating machine station with generator

FOB Reference Price:Get Latest Price
US $4,500-8,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Other
Condition:
New
Product Type:
Other
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HEFENG
Model Number:
FR-25
Voltage:
380v
Power(W):
4-8KW
Dimension(L*W*H):
1210*400*480
Weight:
150KG
Certification:
CE/ISO9001
Warranty:
2 Years
After-sales Service Provided:
Overseas third-party support available
Name:
corona treater
Electrode:
ceramic with groove
Electrode quantity:
4pcs
Electrode origin:
Germany
Discharge roller:
bare aluminum /aluminum coating ceramic
Roller dismeter:
150mm
Suitable material:
conductive or nonconductive web
Model:
FR-25
Input voltage:
AC380V
Outside wall:
Made of aluminum
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden case
Port
shenzhen port
Lead Time :
15working days
Video Description
Product Description

Product Application

Hefeng Machinery is a professional production factory which focus on surface treatment industry,such as corona treater,plasma treater,dust cleaner,UV curing system,etc....Hefeng corona machine includes corona generator,corona station,high voltage transformer .The basic principle of corona type ozone machine is the use of corona discharge ozone produced by the ozone generator is composed of a pair of electrodes, dielectric and discharge gap. When the applied AC voltage to the two electrode, due to the high speed electrons and oxygen molecules in high energy collisions, the outside world under the effect of corona discharge in the air gap. The gas with oxygen is ionized, the gap in oxygen concentration increase ionization rate and oxygen ion, and oxygen molecule reaction between ozone formation,Ozone is a strong oxidizer,can change the molecular structure of plastic surface to make it non-palar into polarity.at the same time after the corona treatment,it will cause uneven surface hole roughen,it will enhance surface activity,such as the increase in surface tension,that is ,ink,glue,etc...Will be able to further penetrate the material and processed to achieve the ideal effect on the printing,gluing or coating application.

SPECIFICATIONS FOR FR-25 CORONA STATION AND GENERATOR

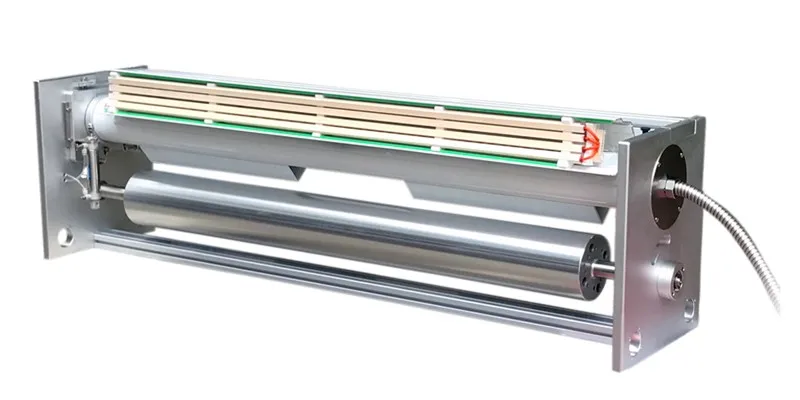

Corona station
Corona roller
aluminum
Ceramic coating/stainless steel(option)
Discharge electrode
ceramic with groove
needn't stick,10% power higer than traditional
Electode quantity
origin from Germany
4-6pcs(option)

Corona genetator
Main performance parameters
CD series(standard)
CG series(smart)
Online speed (max. & min.)
5
250
Input voltage
AC220V/380V
AC220V/380V

Corona transformer

Main Features

1.New type of corona treater,adjustable gap from 1-3mm,can protect system

2.Separate design for high voltage cable and ozone-extracting area to avoid corrosion of cable and increase the life of electrode .
3.The patented “German fin ceramic electrode”a guarantees powerful,homogeneous and uniform treatment for plastic,aluminum,multi-layer films, metallized films and paper.
4.Minimum machine downtime during service and cleaning process.All used material are resistant to corrosion and ozone.No tools necessary to pull out the new fast change electrode cassette.
5.Open rotary electrode system make web threading and changeovers more easy.Besides,it would automatically open and close to maximum efficient under the condition of the thickening material.


Advantage designed



New patented ceramic designed

Groove designed ceramic ,Teflon fixation can maintain straightness

4-5pcs of ceramic bar

Enough ceramic bar guarantee high running speed .

Fast ceramic replacement and cleaning

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

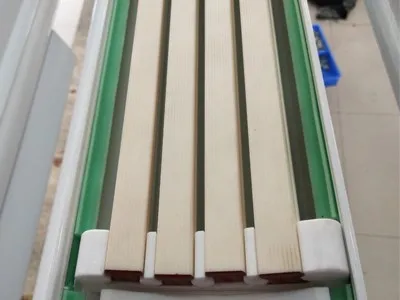

New designed groove ceramic

Groove ceramic bar discharge more uniform,15% more working efficiency than tradition square ceramic bar

Detailed Images
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

How to choose a suitable corona machine for ours production line?

There is very important for ours customer to choose a suitable corona machine,before decide to buy the corona machine,you must present the follow informations to ours sales person.

1.Material is sheet,film or other irregular shape?

2.Which kinds of material are you goineg to do the treatment?(PET,PVC,BOPP,EVA,ect...)

3.Does the treated material conductive or nonconductive?

4.Application production line of the corona machine(limitation,coating,printing...)

5.Running speed

6.Material minimum and maximum thickness.

Packing & Delivery
Packaging
Size
depend on the corona size
Weight
30-100KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
73(L) * 38 (W) * 49(D)CM
Weight
23



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
