Narrow corona machine for lithium battery Coating

FOB Reference Price:Get Latest Price
US $4,500-8,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Other
Condition:
New
Product Type:
Other
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HEFENG
Model Number:
FR-20
Voltage:
220v/380v
Power(W):
2-4KW
Dimension(L*W*H):
0.7*0.2*0.35
Weight:
50KG
Certification:
CE/ISO9001
Warranty:
2 Years
After-sales Service Provided:
Overseas third-party support available
Name:
corona treater
Electrode:
ceramic
Electrode quantity:
6pcs
Electrode origin:
Germany
Discharge roller:
aluminum
Roller dismeter:
120mm
Suitable material:
aluminum foil and copper foil
Model:
FR-20
Input voltage:
AC220V/AC380V
Outside wall:
Made of aluminum
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden case
Port
shenzhen port
Lead Time :
15working days
Product Description

Product Application

Hefeng Machinery is a professional production factory which focus on surface treatment industry,such as corona treater,plasma treater,dust cleaner,UV curing system,etc....Hefeng corona machine includes corona generator,corona station,high voltage transformer .The basic principle of corona type ozone machine is the use of corona discharge ozone produced by the ozone generator is composed of a pair of electrodes, dielectric and discharge gap. When the applied AC voltage to the two electrode, due to the high speed electrons and oxygen molecules in high energy collisions, the outside world under the effect of corona discharge in the air gap. The gas with oxygen is ionized, the gap in oxygen concentration increase ionization rate and oxygen ion, and oxygen molecule reaction between ozone formation,Ozone is a strong oxidizer,can change the molecular structure of plastic surface to make it non-palar into polarity.at the same time after the corona treatment,it will cause uneven surface hole roughen,it will enhance surface activity,such as the increase in surface tension,that is ,ink,glue,etc...Will be able to further penetrate the material and processed to achieve the ideal effect on the printing,gluing or coating application.

SPECIFICATIONS FOR FR-20 CORONA STATION AND GENERATOR
Corona station
Corona roller
aluminum
Ceramic coating/stainless steel(option)
Discharge electrode
ceramic with groove
needn't stick,10% power higer than traditional
Electode quantity
origin from Germany
4-6pcs(option)

Corona genetator
Main performance parameters
CD series(standard)
CG series(smart)
Online speed (max. & min.)
5
250
Input voltage
AC220V/380V
AC220V/380V

Corona transformer

Main Features

1) The discharge treater with the new"HeFeng-Home-Set",-Adjustment-System 1-3mm with Electrode stop to protect the system

2) The new HeFeng corona station with high voltage cable connection is located outside of the ozone-extraction area.Whereby the cable will be   protected against anti-corrossion to increase the lifecycle of the electrode.

3) The patented"German fin ceramic electrode"guarantees a powerful,homogenous and uniform treatments for plastics,alumimium,multi-layer

films,metallised films and papers.

4)Minimum machine downtime during service and cleaning process.All used materials are resistant to corrosion and ozone.No tools necessary to pull out the new electrode cassette.

5) The new open design of the discharge treater with inspection window in the front allows visual inspection of the production process.

6)Comfortable removeable cassette for simple maintenance and cleaning,easy web treading and changeiers.Moreover,there is no limit position to integrate a new or existing prouction lines

Certifications
Detailed Images


Name: Inspection window

Brand:HEFENG

Original: CHINA

The corona station have the inspection window to abserve the corona working status


Name: Caramic cassette
Brand: HEFENG
Original: CHINA
When threading,pull out the ceramic cassette,easy for cleaning,

corona station on obove ot the cassette to protect the high voltage cable no oxidation

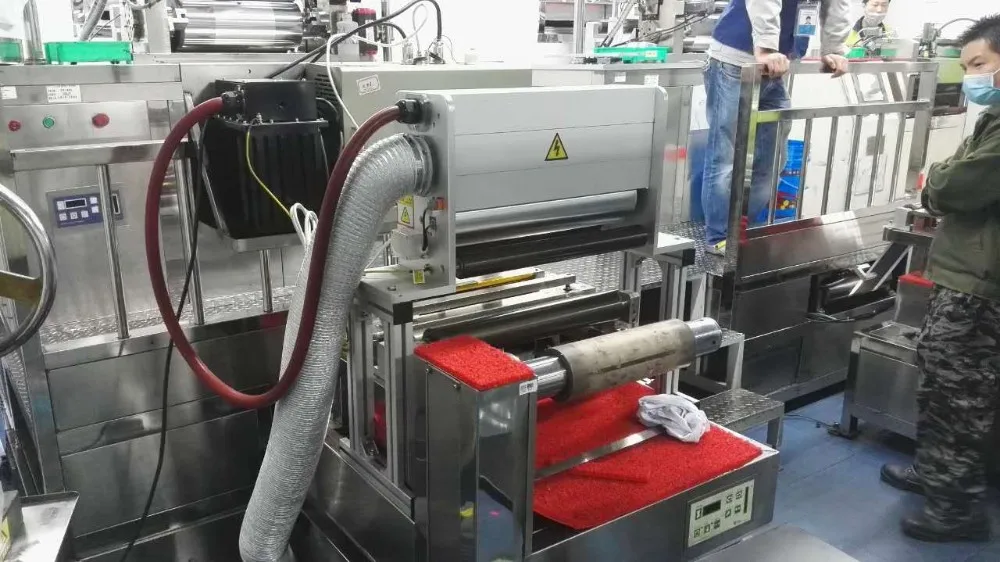

Major application for narrow web,such as flexo printing machine,lithium-ion battery coating or others


Name: Discharge roller
Brand:
Original: China
Adopted aluminum discharge roller,the diameter is 120mm,can select aluminum bare roller or surface ceramic coating roller.

Name: Germany ceramic bar
Brand:
Original: Germany
The ceramic bar with groove for fixed and for discharge,no necessory for sticky.working effect will be 10% better than the traditional 15*15 square ceramic bar

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
depend on the corona size
Weight
30-100KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
73(L) * 38 (W) * 49(D)CM
Weight
23



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
